Heavy Duty Cylinder Repair Bench

Overview

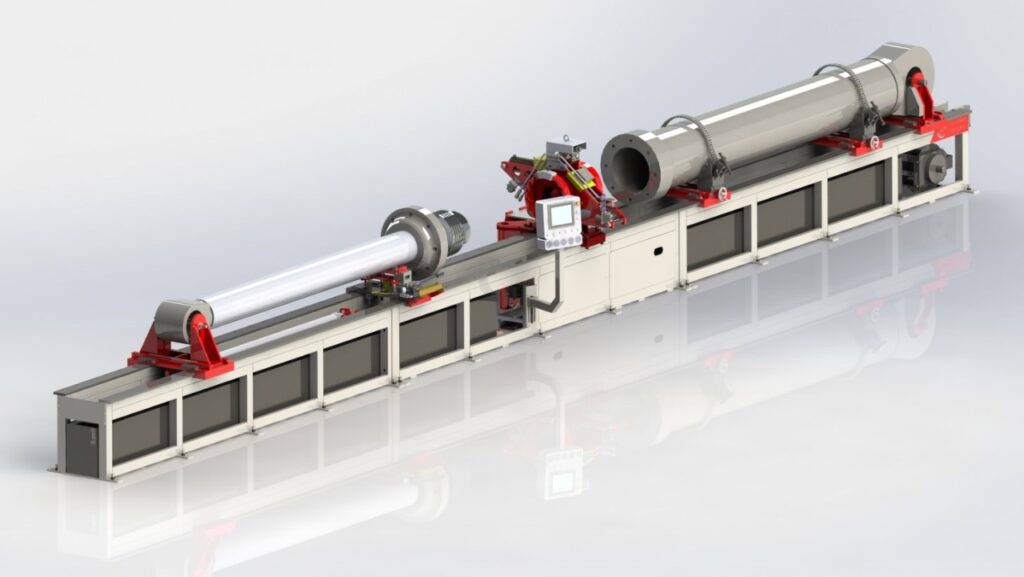

The Micron Heavy-Duty Hydraulic Cylinder Repair Bench is designed to comfortably accommodate the largest Mining and Earth Moving Cylinders on the market –
The design mandate is to improve operator efficiency and allow a single operator to quickly and safely strip or assemble the largest cylinders, including the Liebherr 9800, CAT6090 and Hitachi EX8000.

Our Heavy Duty Bench offers a massive 135’000 Nm of rotational force and a barrel OD of up to 630mm.
Integrated Cylinder Pressure testing is available up to 350Bar as standard and up to 500 Bar with full digital test reporting and laser stroke measurement.

Key Specifications

• Custom length bench frame
• Sole operator Wireless Pendent Control
• Min barrel OD: 100mm
• Max barrel OD: 650mm
• 4,000 Nm nut runner

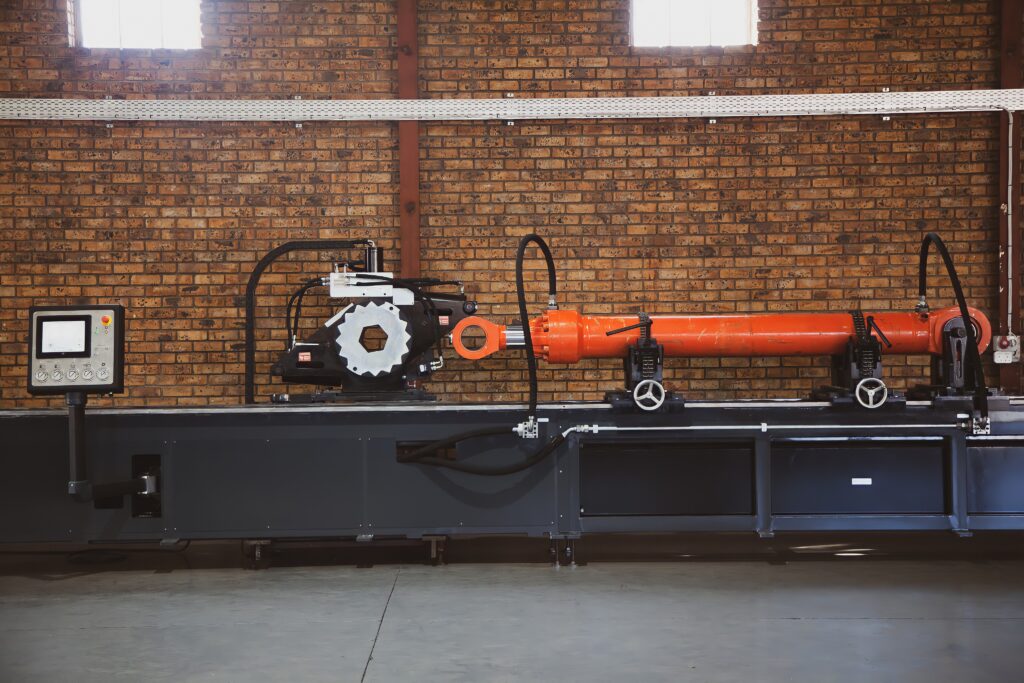

• Nutcracker torque range: up to 135,000Nm

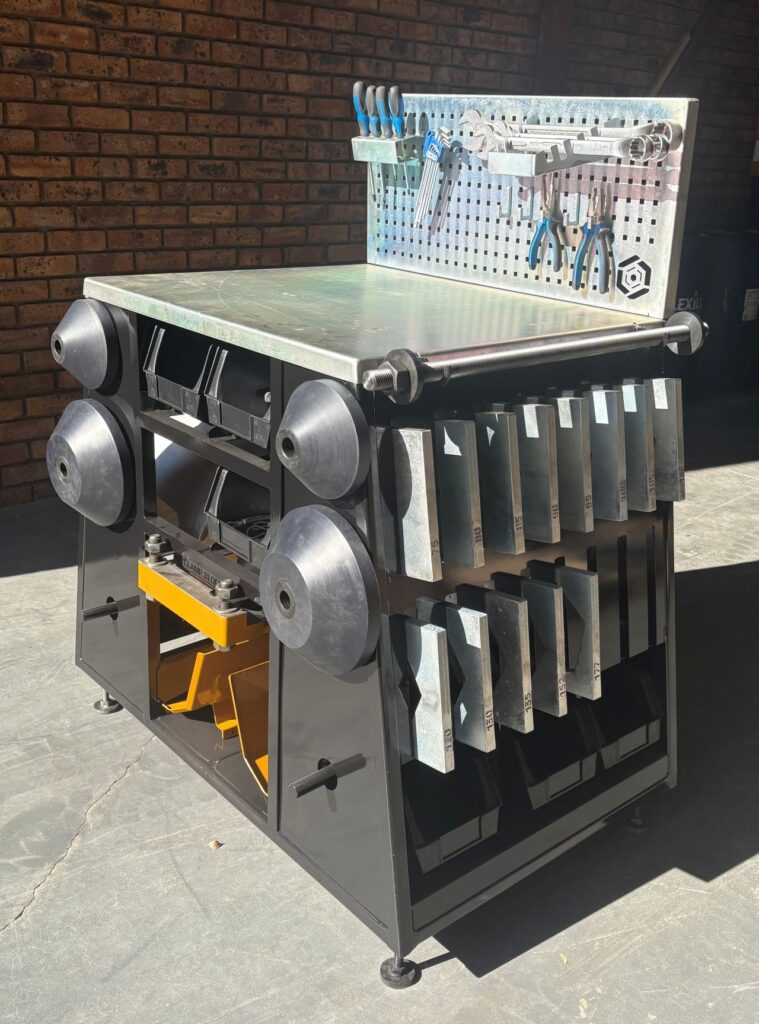

• Custom made spanner plate tooling
• SCADA operator interface
• Pressure testing to 350Bar (500Bar optional high-pressure upgrade)
• Printable pressure test report
• Laser stroke measurement
• Clean Oil Reservoir / Dirty Oil Reservoir
• Waste Oil Transfer System
• Continuous recirculation filtration (ISO10100)
• Optional oil condition monitoring
